NOMENCLATURE FOR FIRE EXTINGUISHER |
30LTR FLUORINE FREE FOAM STORED PRESSURE (MILD STEEL) |
50LTR FLUORINE FREE FOAM STORED PRESSURE (MILD STEEL) |
70LTR FLUORINE FREE FOAM STORED PRESSURE (MILD STEEL) |

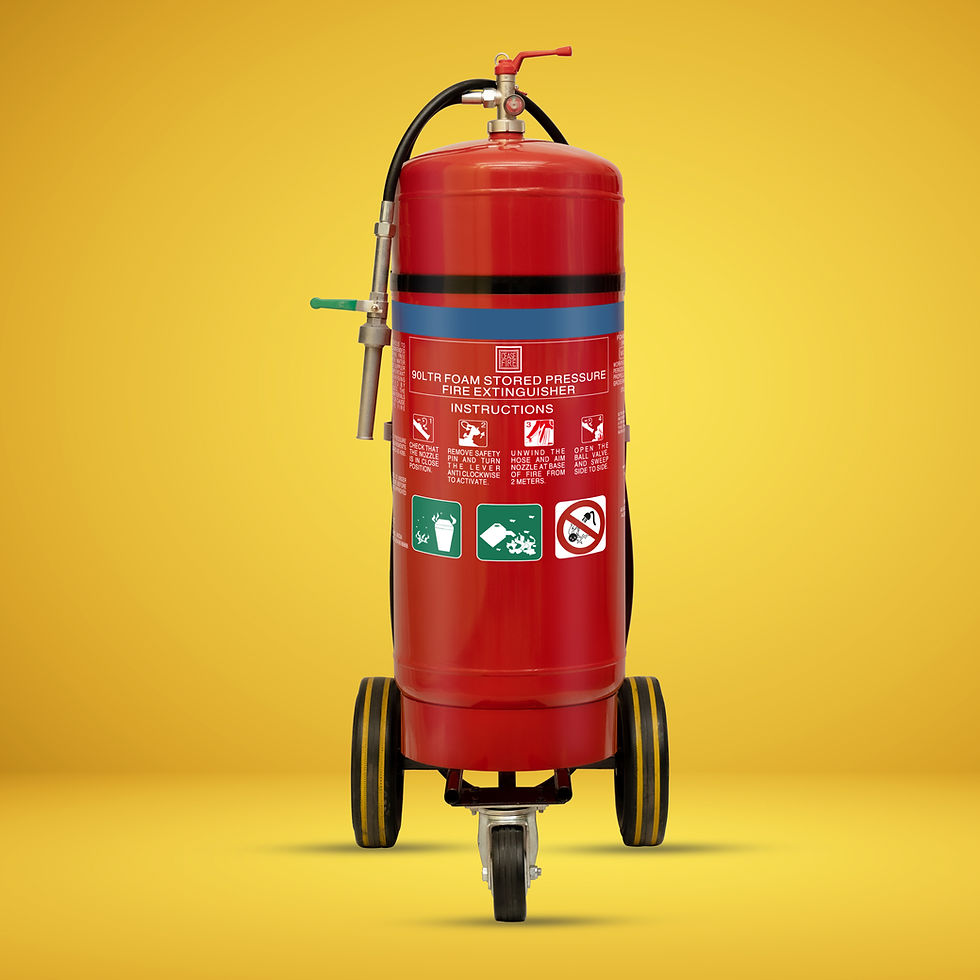

90LTR FLUORINE FREE FOAM STORED PRESSURE (MILD STEEL) |
135LTR FLUORINE FREE FOAM STORED PRESSURE (MILD STEEL) |
PRODUCT CODE |
CF-001440 |
CF-001441 |
CF-001442 |
CF-001443 |
CF-001444 |
EXTINGUISHING AGENT |
WATER + 6% OF FLUORINE FREE FOAM |
WATER + 6% OF FLUORINE FREE FOAM |
WATER + 6% OF FLUORINE FREE FOAM |
WATER + 6% OF FLUORINE FREE FOAM |
WATER + 6% OF FLUORINE FREE FOAM |
AGENT CATEGORY |
FF-FOAM |
FF-FOAM |
FF-FOAM |
FF-FOAM |
FF-FOAM |
THROW |
4 METERS |
7 METERS |
7 METERS |
7 METERS |
10 METERS |
CERTIFICATION |
A)PED
B)BSI AUS
C) ISO 9001 |
A)PED
B)BSI AUS
C) ISO 9001 |
A)PED
B)BSI AUS
C) ISO 9001 |
A)PED
B)BSI AUS
C) ISO 9001 |
A)PED
B)BSI AUS
C) ISO 9001 |
STANDARD REFERENCE |
AS/NZS 4265 |
AS/NZS 4265 |
AS/NZS 4265 |
AS/NZS 4265 |
AS/NZS 4265 |
FILLED WEIGHT RANGE APPROX |
67.00KG |
96.00KG |
134.00KG |
162.00KG |
229.00KG |
TOTAL HEIGHT APPROX |
990 MM |
1200 MM |
1200 MM |
1425 MM |
1560 MM |
OPERATING MECHANISM |
OPERATING LEVER (BALL VALVE) |
OPERATING LEVER (BALL VALVE) |
OPERATING LEVER (BALL VALVE) |
OPERATING LEVER (BALL VALVE) |
OPERATING LEVER (BALL VALVE) |
APPLICABLE TO TYPE OF FIRE |
CLASS A, B |
CLASS A, B |
CLASS A, B |
CLASS A, B |
CLASS A, B |
FIRE RATINGS |
4A, 10B |
4A, 10B |
4A, 10B |
4A, 10B |
4A, 10B |
CAN CONSTRUCTION |
DRAWN ROLLED AND MIG WELDED |
DRAWN ROLLED AND MIG WELDED |
DRAWN ROLLED AND MIG WELDED |
DRAWN ROLLED AND MIG WELDED |
DRAWN ROLLED AND MIG WELDED |
VALVE / CAP CONSTRUCTION |
FORGING AND MACHINING |
FORGING AND MACHINING |
FORGING AND MACHINING |
FORGING AND MACHINING |
FORGING AND MACHINING |
ANTI CORROSIVE TREATMENT |
PHOSPHATING & POWDER COATING |
PHOSPHATING & POWDER COATING |
PHOSPHATING & POWDER COATING |
PHOSPHATING & POWDER COATING |
PHOSPHATING & POWDER COATING |
INTERNAL COATING |
EPOXY POWDER COATING |
EPOXY POWDER COATING |
EPOXY POWDER COATING |
EPOXY POWDER COATING |
EPOXY POWDER COATING |
WARRANTY IN YEAR |
1 |
1 |
1 |
1 |
1 |
SERVICE PRESSURE |
1500KPA / 15 BAR |
1500KPA / 15 BAR |
1500KPA / 15 BAR |
1500KPA / 15 BAR |
1500KPA / 15 BAR |
DIA. OF BODY |
300 MM |
400.0 MM |
400 MM |
400MM |
450.0 MM |
HYDROSTATIC TEST PRESSURE |
3.0 MPA / 30BAR |
3.0 MPA / 30BAR |
3.0 MPA / 30BAR |
3.0 MPA / 30BAR |
3.0 MPA / 30BAR |
CYLINDER MATERIAL SPEC. |
STEEL CR2(DC01) |
STEEL CR2(DC01) |
STEEL CR2(DC01) |
STEEL HR3(DD13) |
STEEL CR2(DC01) |
SHEET THICKNESS |
3.0 MM |
3.5 MM |
3.5 MM |
3.5MM |
3.5MM |
BODY COLOUR |
RED (R13) |
RED (R13) |
RED (R13) |
RED (R13) |
RED (R13) |
PRESSURE INDICATING DEVICE |
PRESSURE GAUGE |
PRESSURE GAUGE |
PRESSURE GAUGE |
PRESSURE GAUGE |
PRESSURE GAUGE |
HOSE PIPE |
EPDM RUBBER BRAIDED HOSE PIPE |
EPDM RUBBER BRAIDED HOSE PIPE |
EPDM RUBBER BRAIDED HOSE PIPE |
EPDM RUBBER BRAIDED HOSE PIPE |
EPDM RUBBER BRAIDED HOSE PIPE |
FLEXIBLE LENGTH OF HOSE PIPE APPROX. |
5000 MM |
5000 MM |
5000 MM |
5000 MM |
5000 MM |
EFFECTIVE DISCHARGE TIME APPROX. |
>30SEC |
>30SEC |
>30SEC |
>30SEC |
>30SEC |
DISCHARGE PERCENTAGE |
> 95% |
> 95% |
> 95% |
> 95% |
> 95% |
